Build Station (10 FT.)

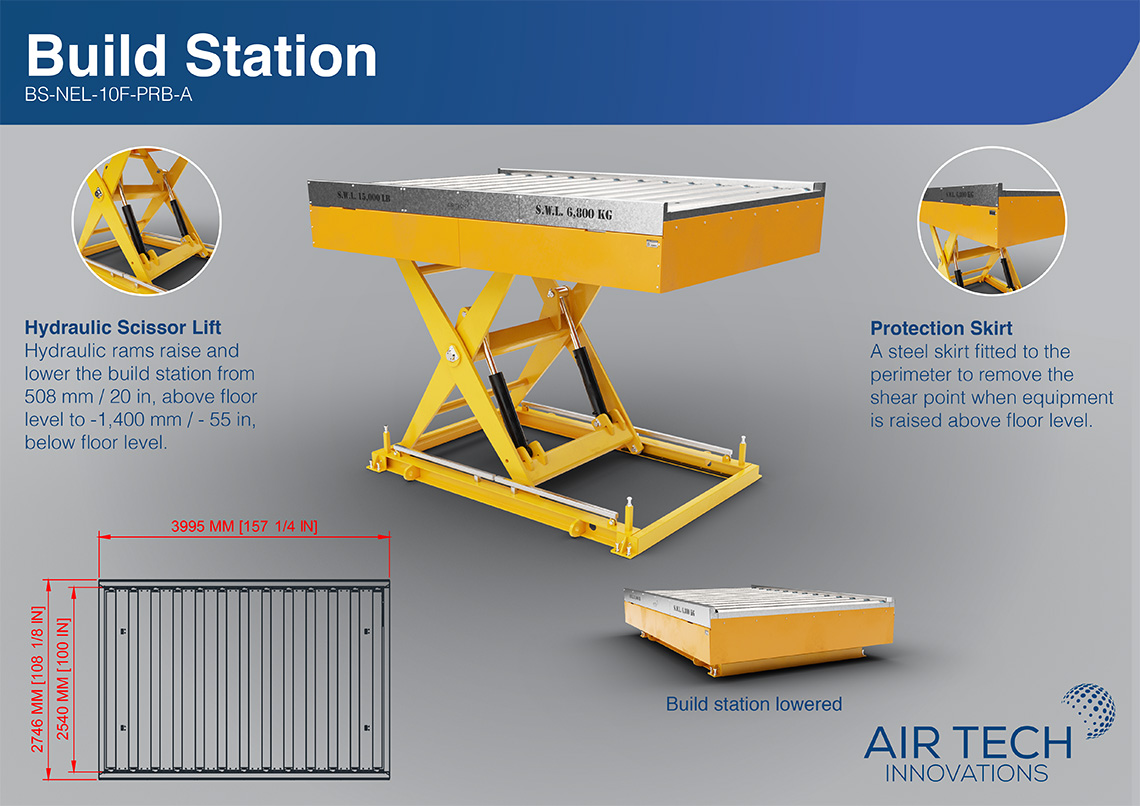

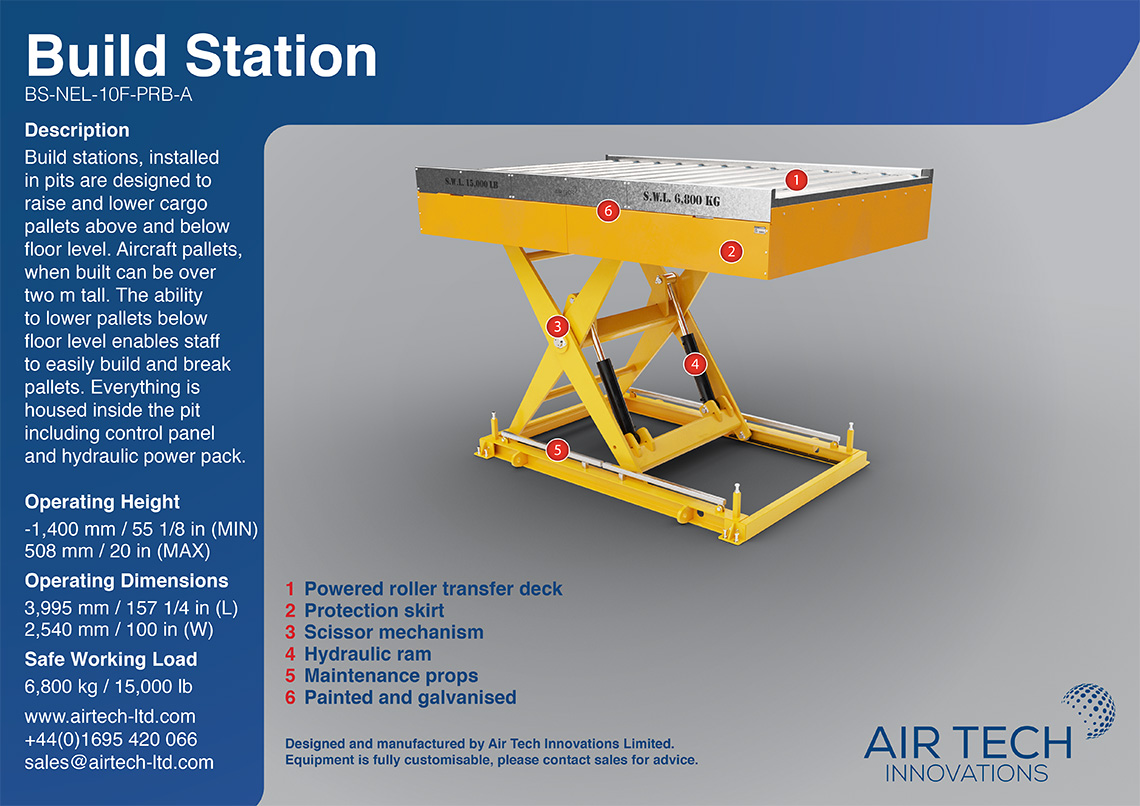

Build stations, installed in pits are designed to raise and lower cargo pallets above and below floor level. Aircraft pallets, when built can be over two m tall. The ability to lower pallets below floor level enables staff to easily build and break pallets. Everything is housed inside the pit including control panel and hydraulic power pack.
Operating Height:
-1,400 mm / 55 1/8 in (MIN)
508 mm / 20 in (MAX)
Operating Dimensions
3,995 mm / 157 1/4 in (L)
2,540 mm / 100 in (W)
Safe Working Load
6,800 kg / 15,000 lb
