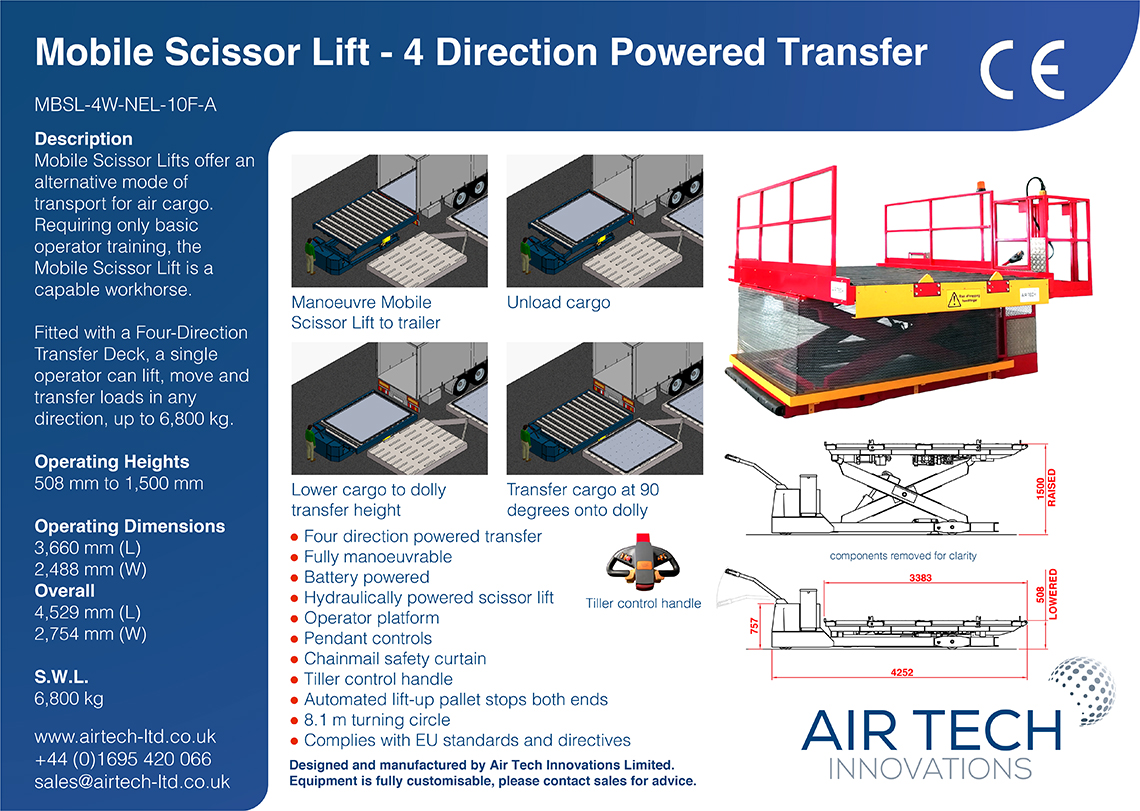

Mobile Scissor Lift - 4-Direction Powered Transfer

Mobile Scissor Lifts offer an alternative mode of transport for air cargo. Requiring only basic operator training, the Mobile Scissor Lift is a capable workhorse.

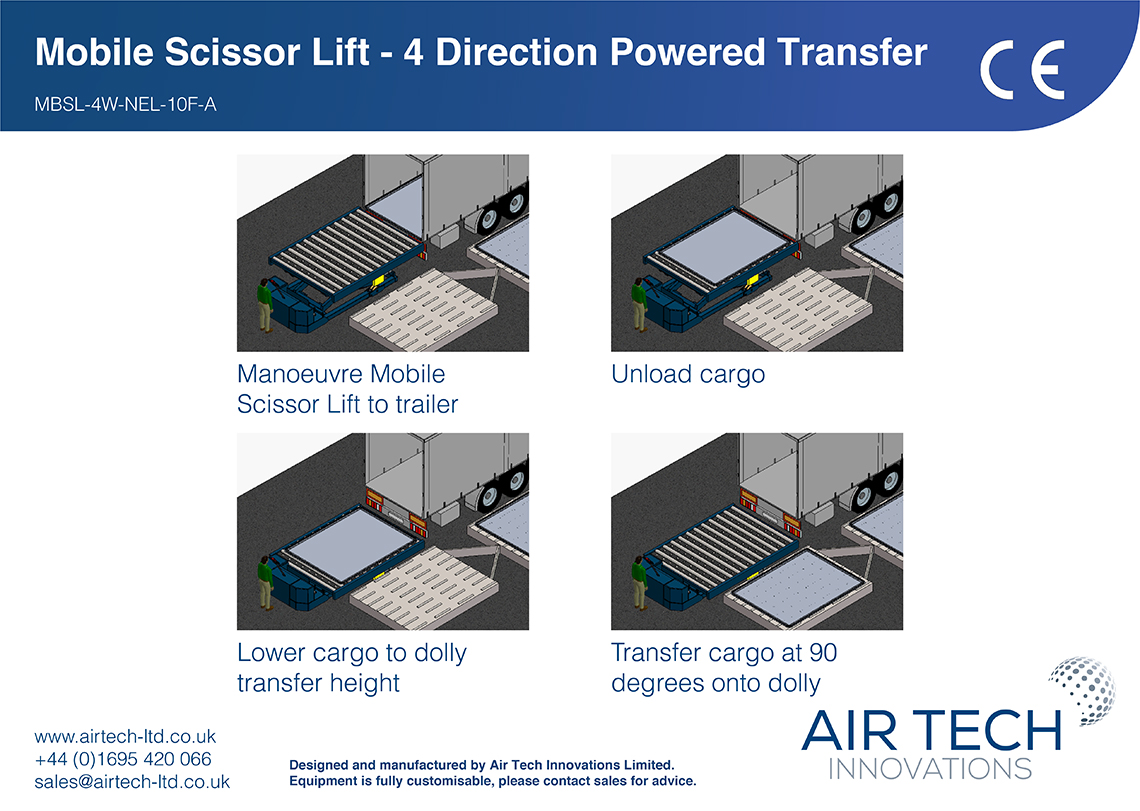

Fitted with a Four-Direction Transfer Deck, a single operator can lift, move and transfer loads in any direction, up to 6,800 kg.

Features:

  • Four direction powered transfer
  • Fully manoeuvrable
  • Battery powered
  • Hydraulically powered scissor lift
  • Operator platform
  • Pendant controls
  • Chainmail safety curtain
  • Tiller control handle
  • Automated lift-up pallet stops both ends
  • 8.1 m turning circle
  • Complies with EU standards and directives

Operating Height:

508 mm to 1,500 mm

Operating Dimensions

  • 3,660 mm (L)
  • 2,488 mm (W)

Overall (including pit)

  • 4,529 mm (L)
  • 2,754 mm (W)

S.W.L

6,800 kg

AIRTECH INNOVATIONS MOBILE SCISSOR LIFT PROMO

Interested in our Mobile Scissor Lift - 4 Direction? Contact Us Today!
