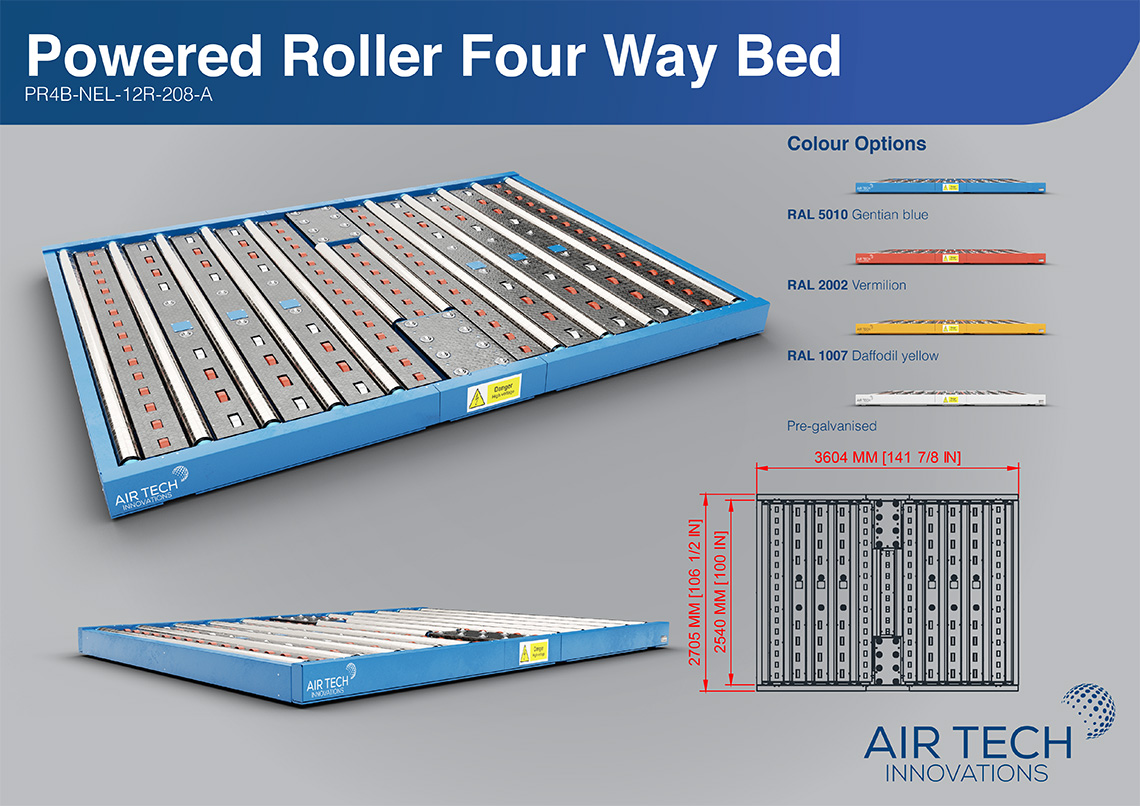

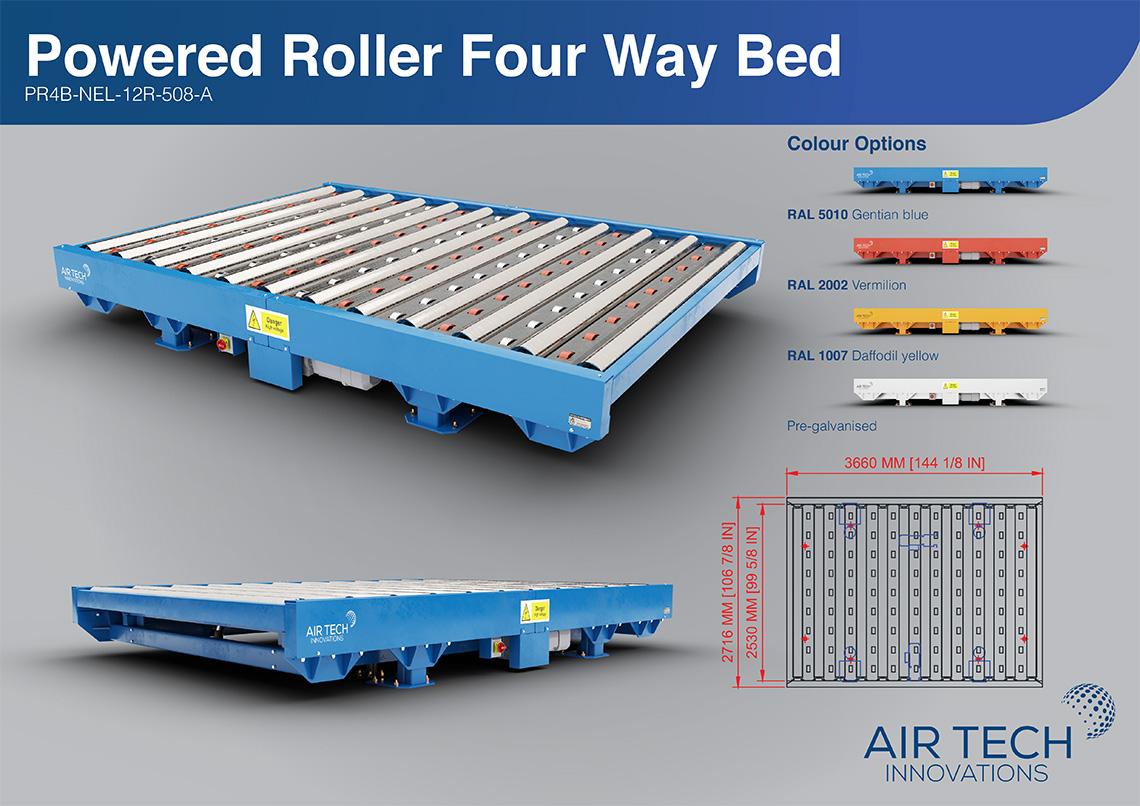

Powered Roller Four Way Bed
High quality powered roller beds designed and manufactured by Air Tech Innovations.
Four way beds provide the same benefits as a powered roller bed with the advantage of transferring cargo at 90 degrees. Driven wheels hydraulically rise between the rollers to drive cargo to or from the powered roller four way bed. Non-slip walkover infills are fitted between rollers to allow personnel to safely walk over the top.

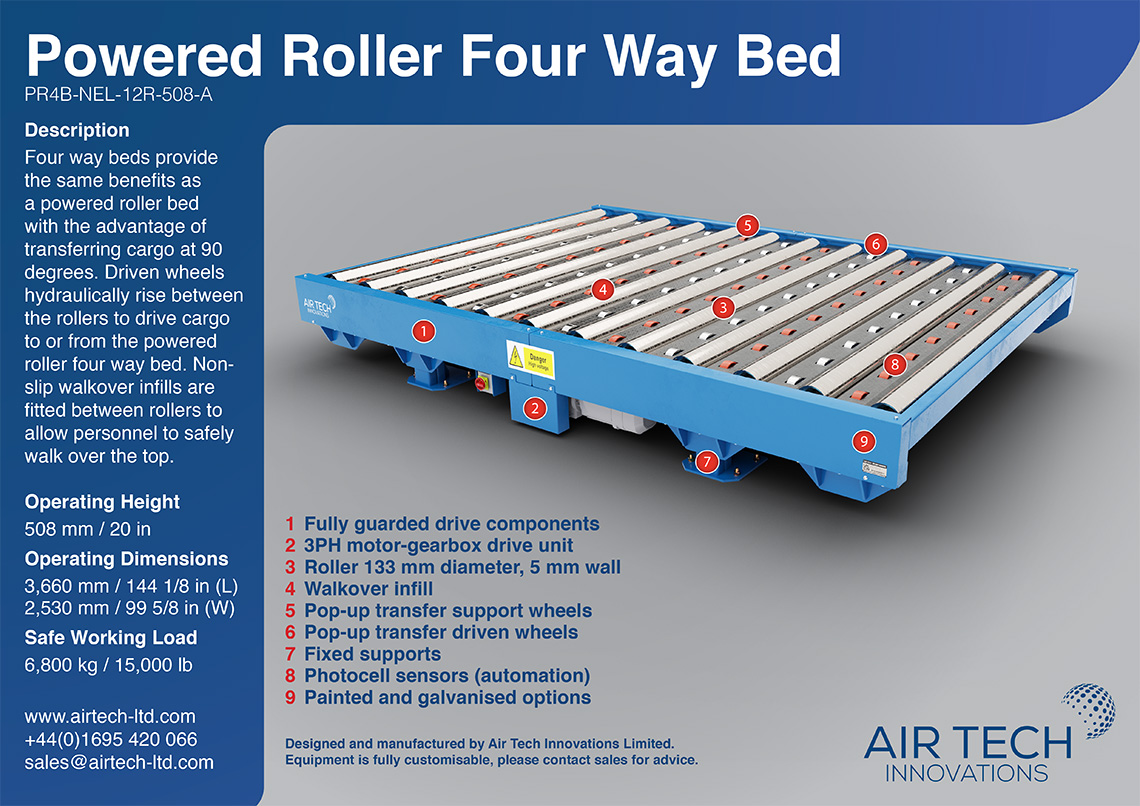

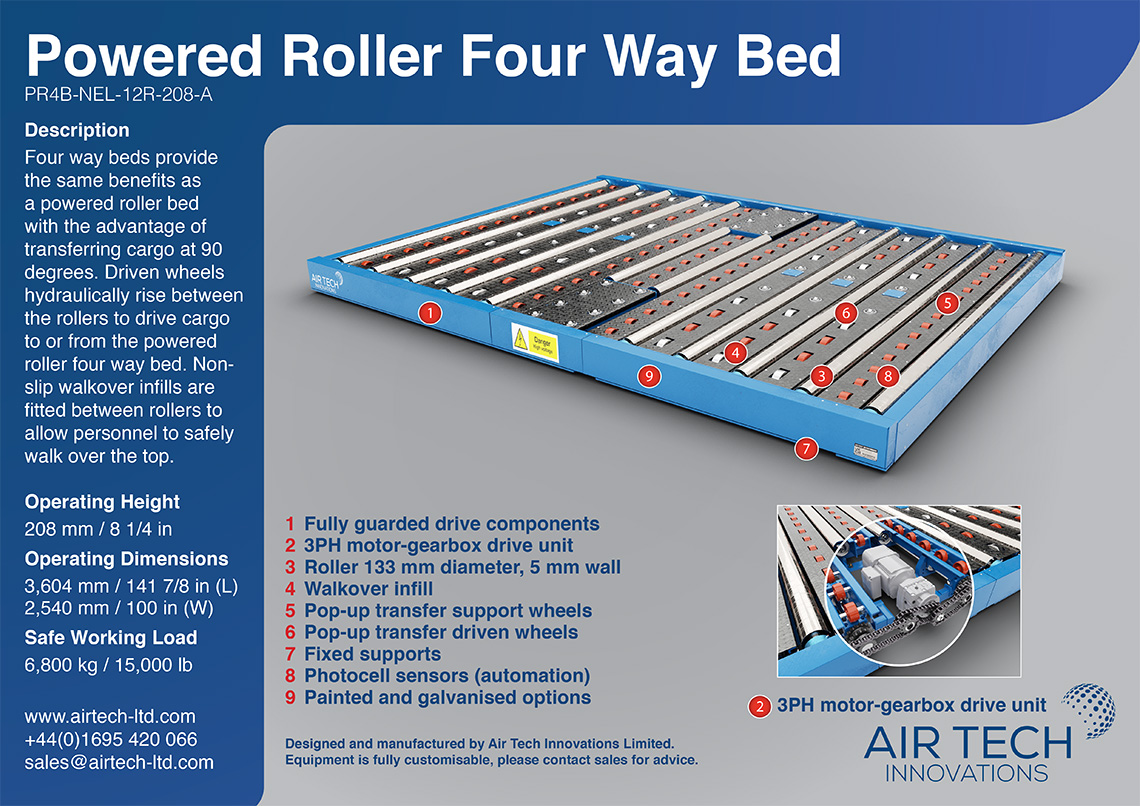

Features:
- Fully guarded drivetrain
- Drive unit (SEW)
- Roller 139.7mm diameter, 5 mm wall
- Walkover
- Pop-up transfer support wheels
- Pop-up transfer driven wheels
- Fixed supports
- Photocell sensor (automation)
- Painted any RAL or galvanised
Operating Height:
508mm / 20 in
Operating Dimensions:
3660mm / 144 1/8 in (Length)
2530mm / 99 5/8 in (Width)
Safe Working Load
6,800 kg / 15,000 lb
