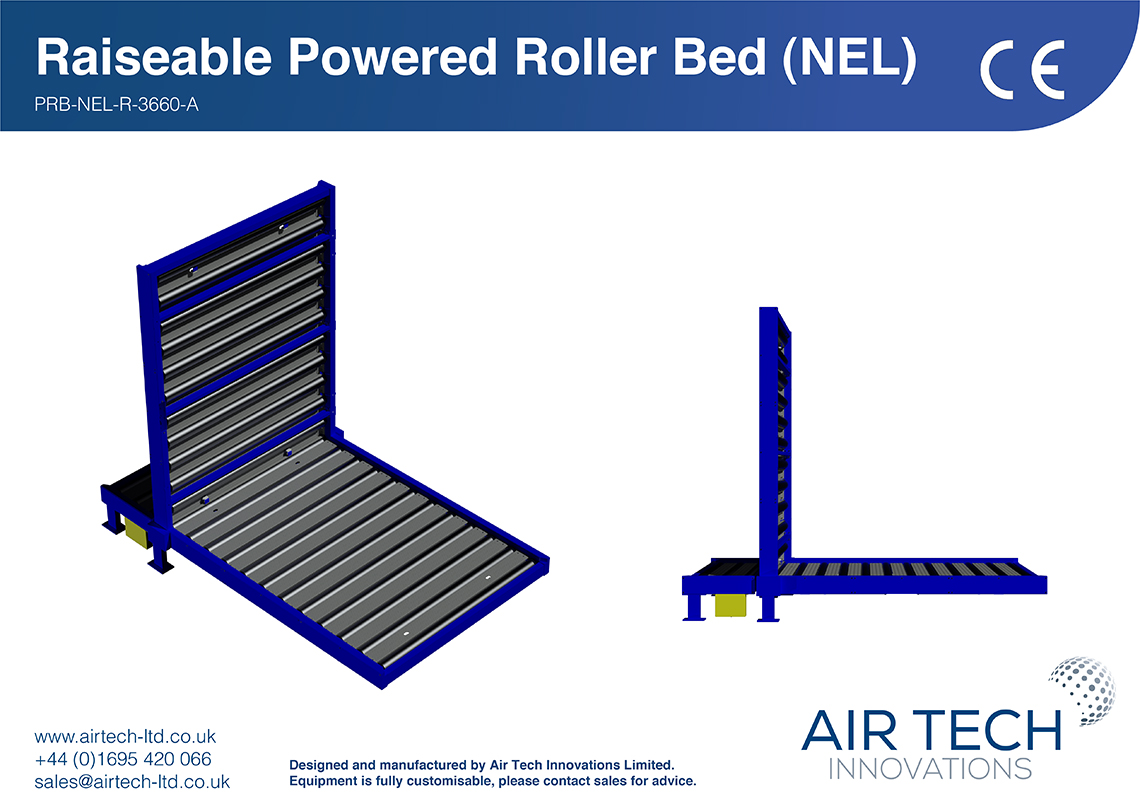

Raiseable Powered Roller Bed (NEL)
A roller conveyor which is hydraulically raiseable and designed to create working space around the perimeter of equipments such as a Build Station.
Available with powered and non-powered, gravity rollers. Non-slip walkover plates are fitted between rollers to allow personnel to safely walk over the top.

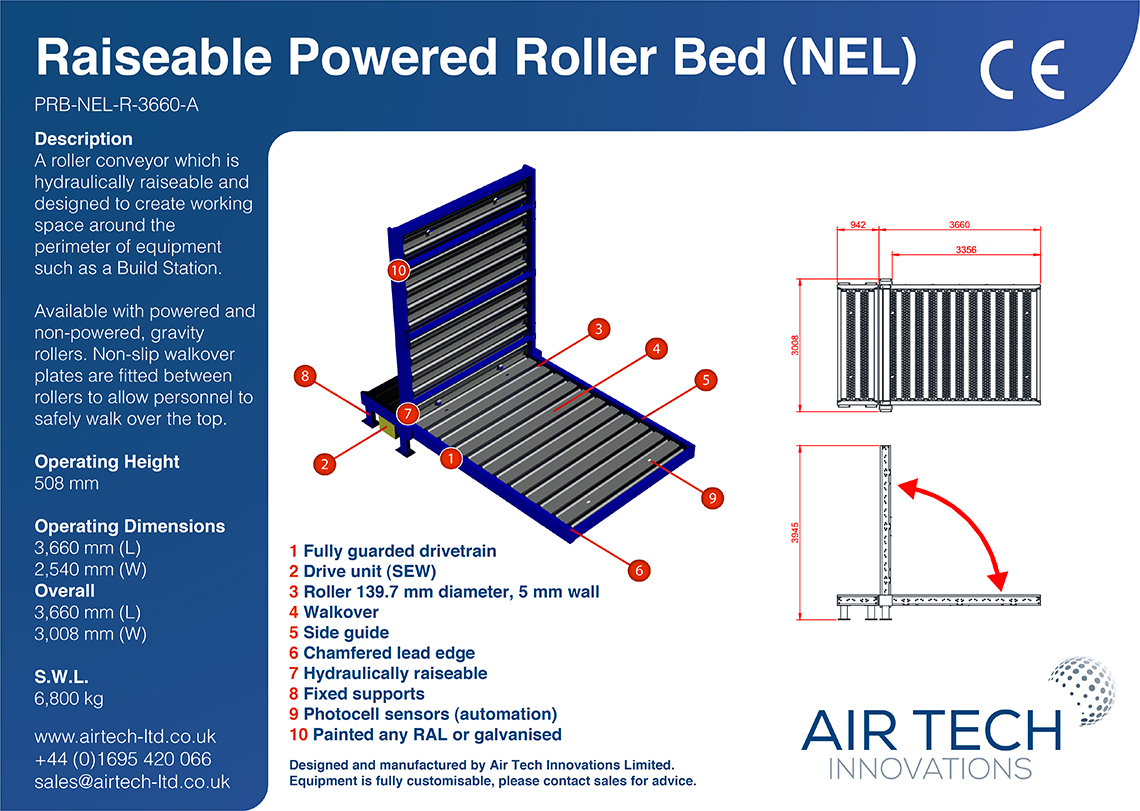

Features:
- Fully guarded drivetrain
- Drive unit (SEW)
- Roller 139.7mm diameter, 5 mm wall
- Walkover
- Sideguide
- Chamfered lead edge
- Hydraulically raiseable
- Fixed supports
- Photocell sensors (automation)
- Painted any RAL or galvanised
Operating Height:
508 mm
Operating Dimensions:
- 3,660 mm (L)
- 2,540 mm (W)
Overall:
- 3,660 mm (L)
- 3,008 mm (W)
S.W.L.
6,800 kg
