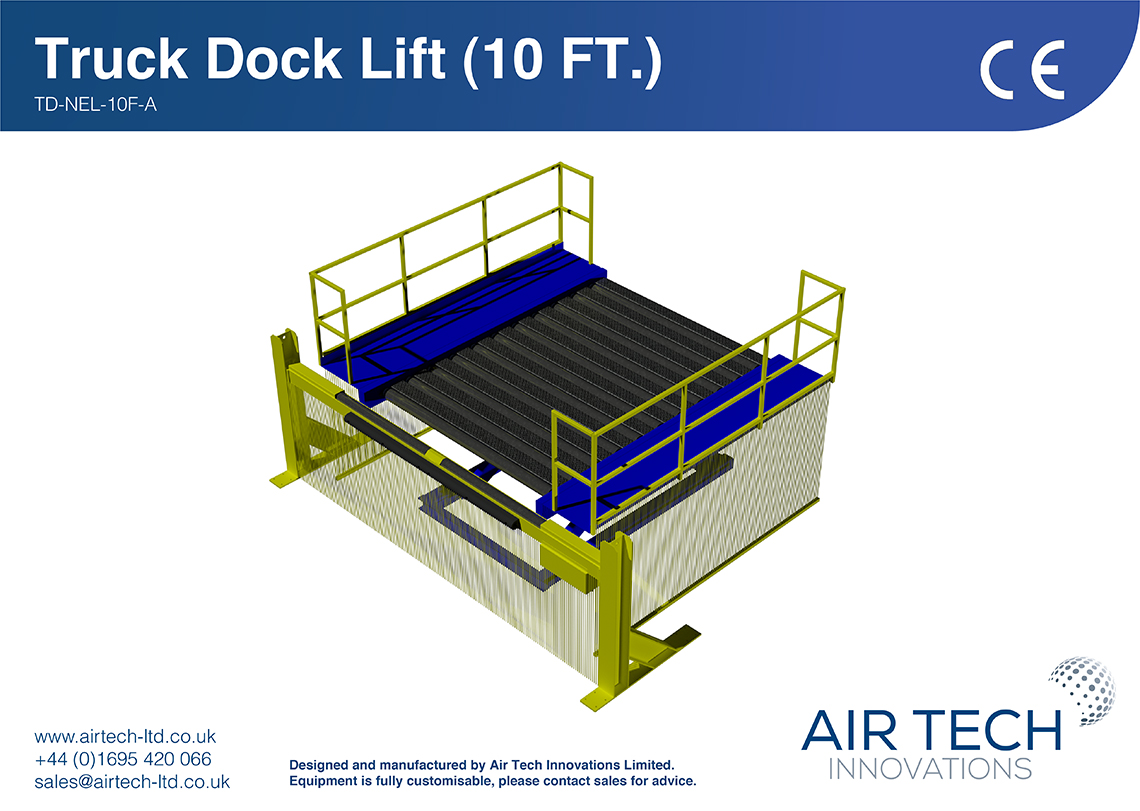

Truck Dock Lift (10 FT.)
Closing the gap between road and air cargo transport, Truck Dock Lifts rise and lower, transporting aircraft pallets from road vehicles to a cargo system height and vice versa. Hydraulic cylinders provide the lifting power and a geared motor unit turns the rollers. Lifts can be tailored to suit any need.

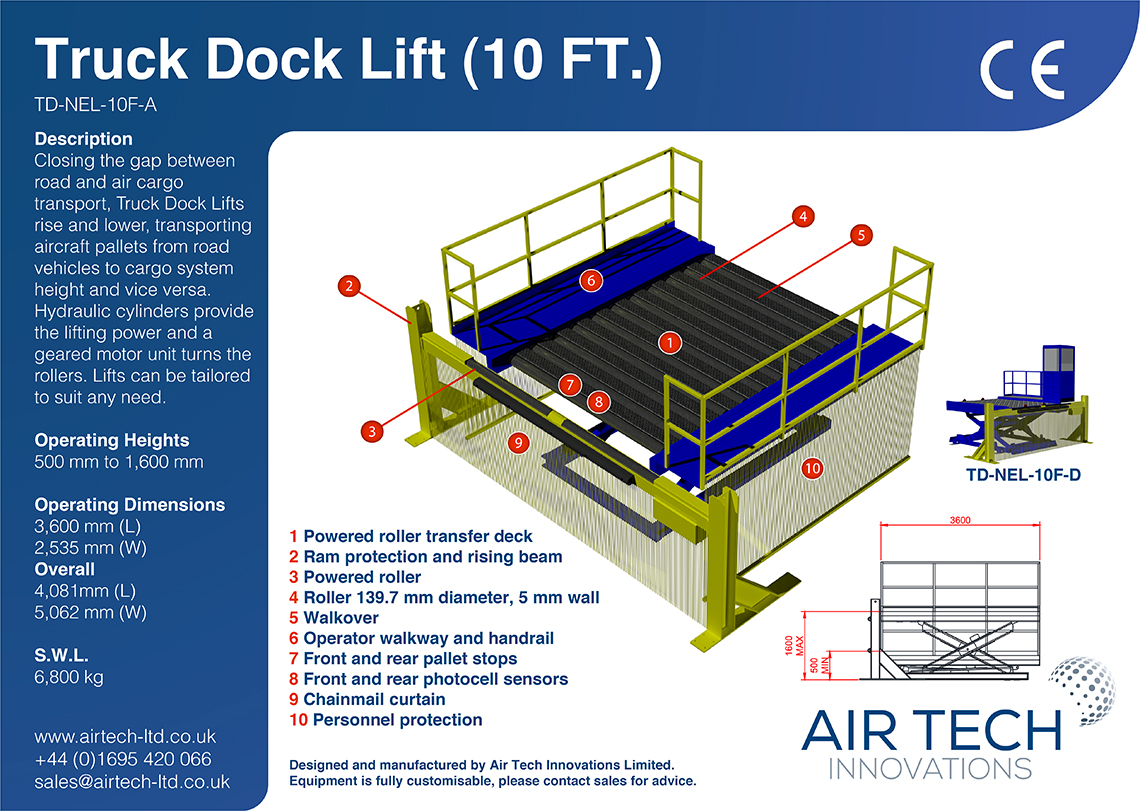

Features:
- Powered roller transfer deck
- Ram protection and rising beam
- Powered roller
- Roller 139.7 mm diameter, 5 mm wall
- Walkover
- Operator walkway and handrail
- Front and rear pallet stops
- Front and rear photocell sensors
- Chainmail curtain
- Personnel protection
Operating Heights:
500 mm (MIN)
1,600 mm (MAX)
Operating Dimensions:
3,600 mm (L)
2,535 mm (W)
Overall:
4,081 mm (L)
5,062 mm (W)
S.W.L.
6,800 kg
